Ripley Server Typical configurations

Ripley
Typical configurations
Configuration	Description	Diagram	File

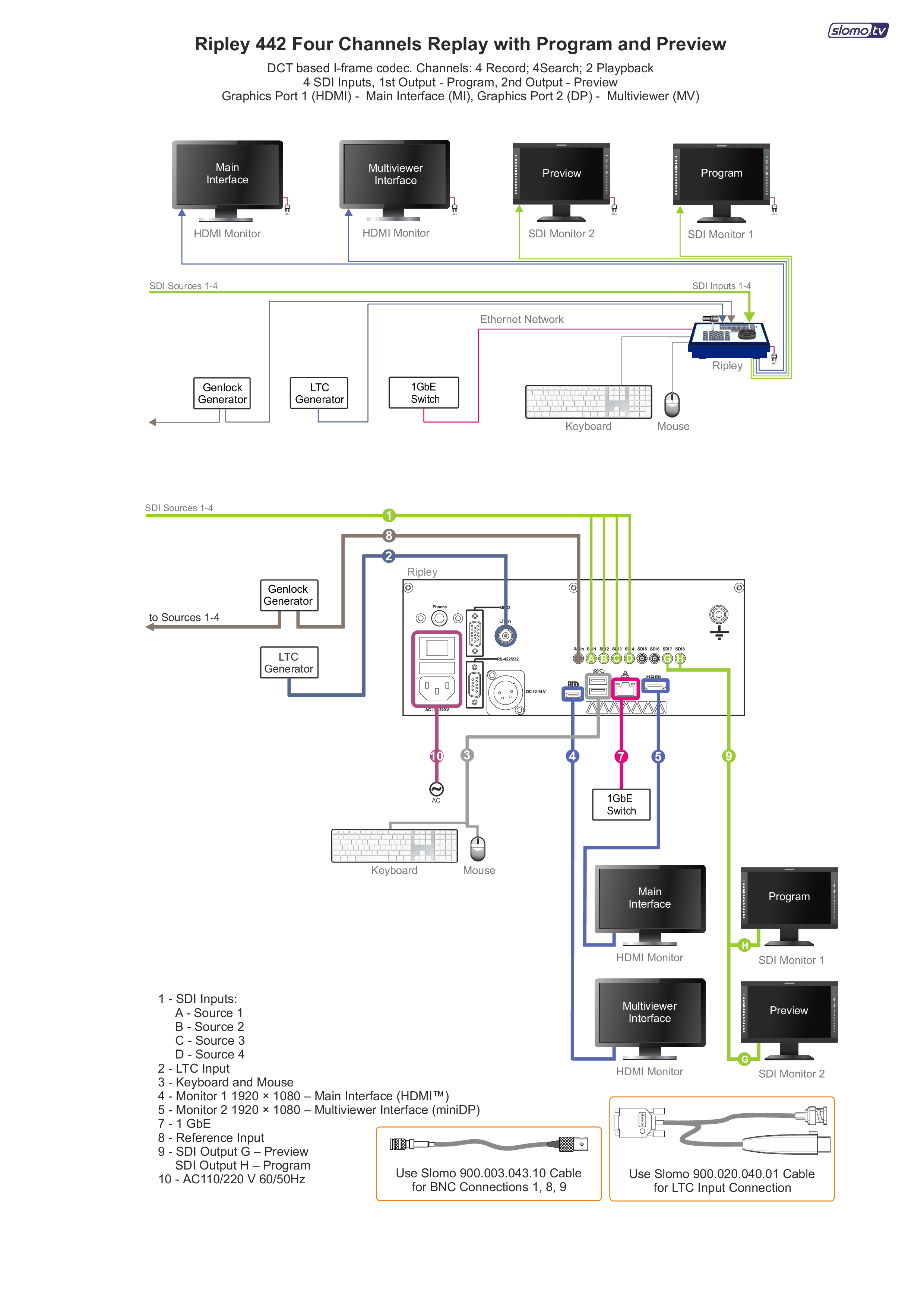

Ripley 442 Four Channels Replay with Program and Preview	DCT based I-frame codec. Channels: 4 Record; 4 Search; 2 Playpback. 4 SDI Inputs, 1st Output – Program, 2nd Output – Preview Graphics Port 1 (DVI) – Main Interface (MI), Graphics Port 2 (HDMI) –- Multiviewer (MV).

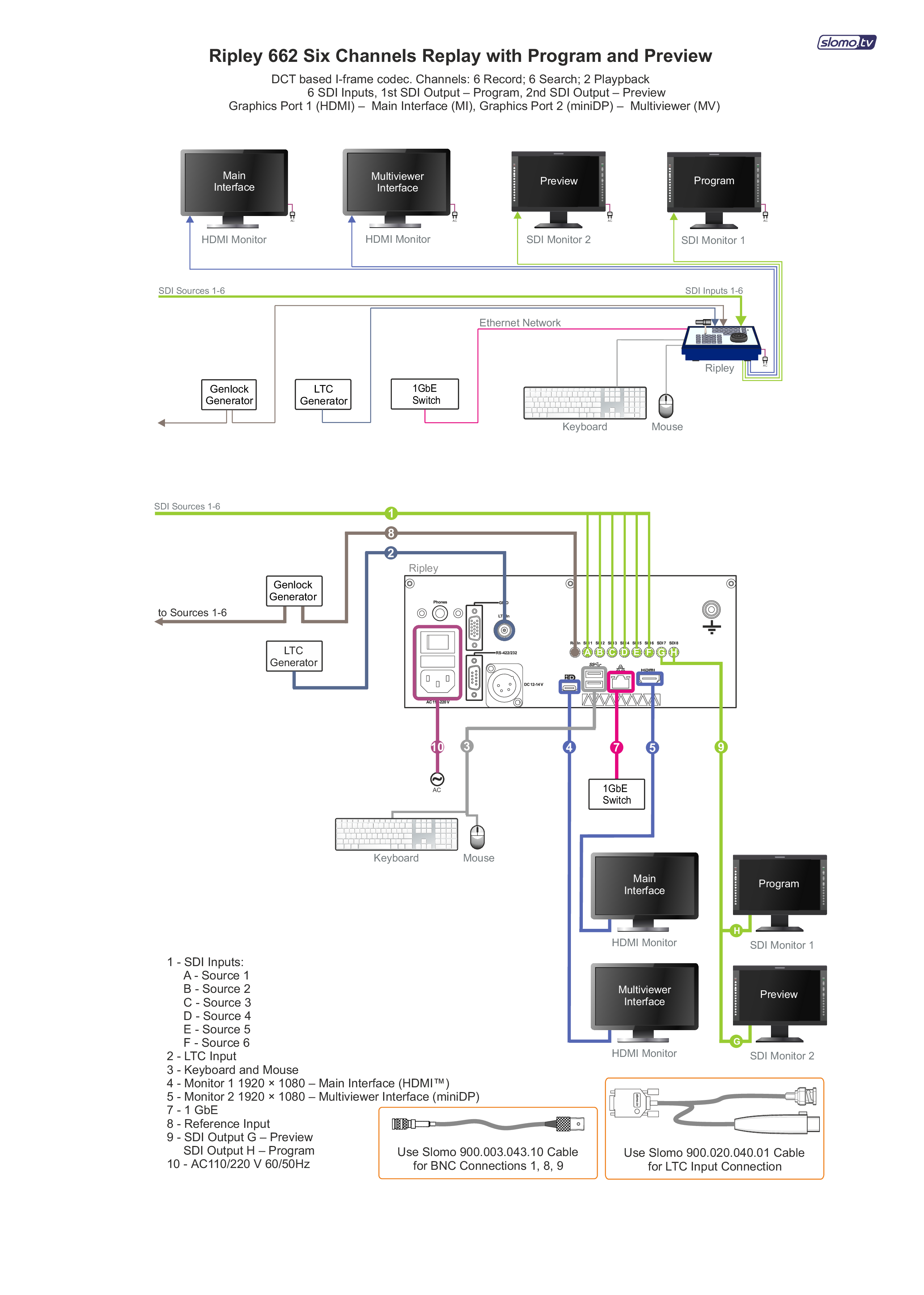

Ripley 662 Six Channels Replay with Program and Preview	DCT based I-frame codec. Channels: 6 Record; 6 Search; 2 Playpback. 6 SDI Inputs, 1st Output – Program, 2nd Output – Preview, Graphics Port 1 (DVI) – Main Interface (MI), Graphics Port 2 (HDMI) – Multiviewer (MV).

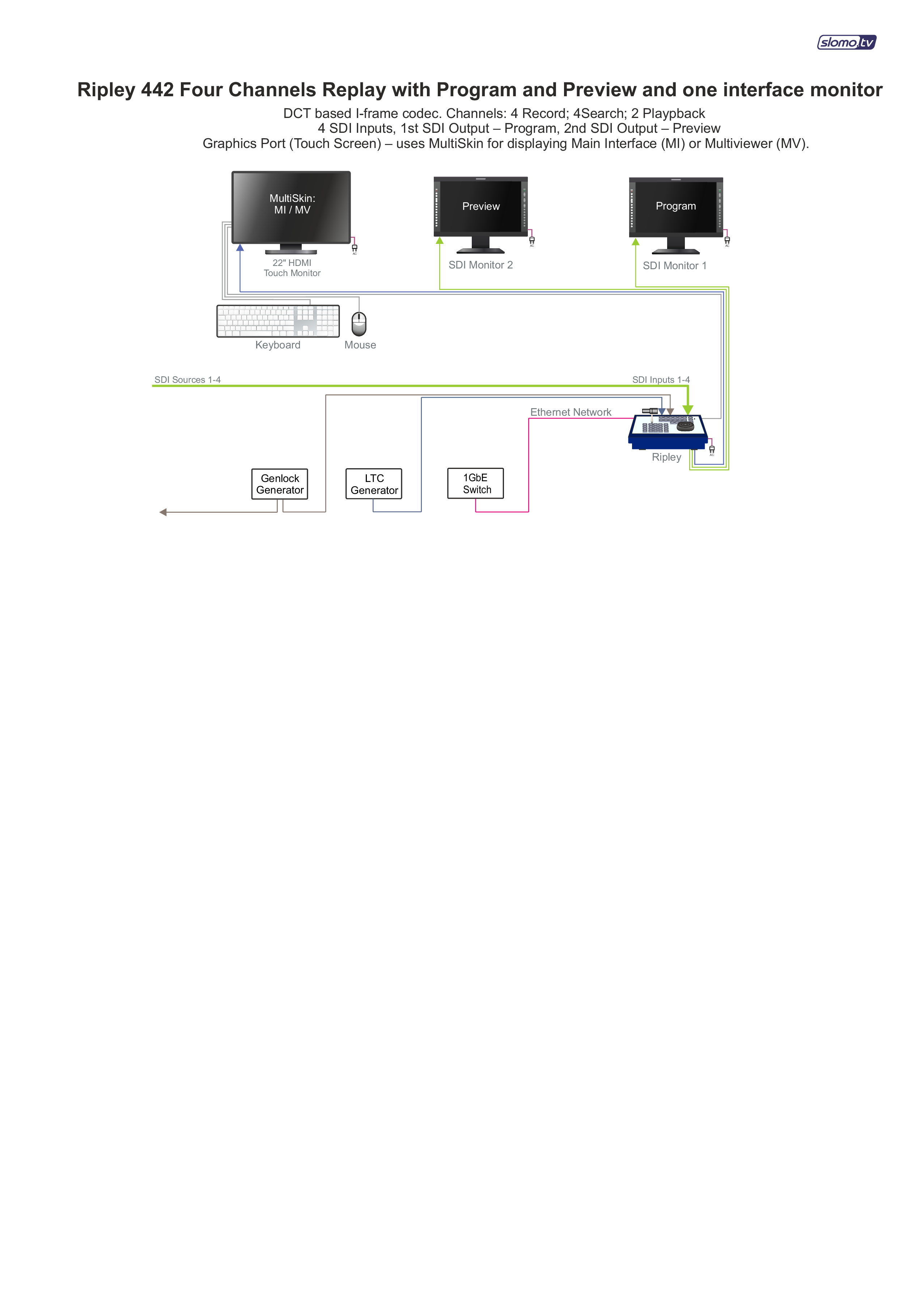

Ripley 442 Four Channels Replay with Program and Preview and one interface monitor	DCT based I-frame codec. Channels: 4 Record; 4Search; 2 Playpback. 4 SDI Inputs, 1st Output – Program, 2nd Output – Preview. Graphics Port (Touch Screen) – uses MultiSkin for displaying Main Interface (MI) or Multiviewer (MV).

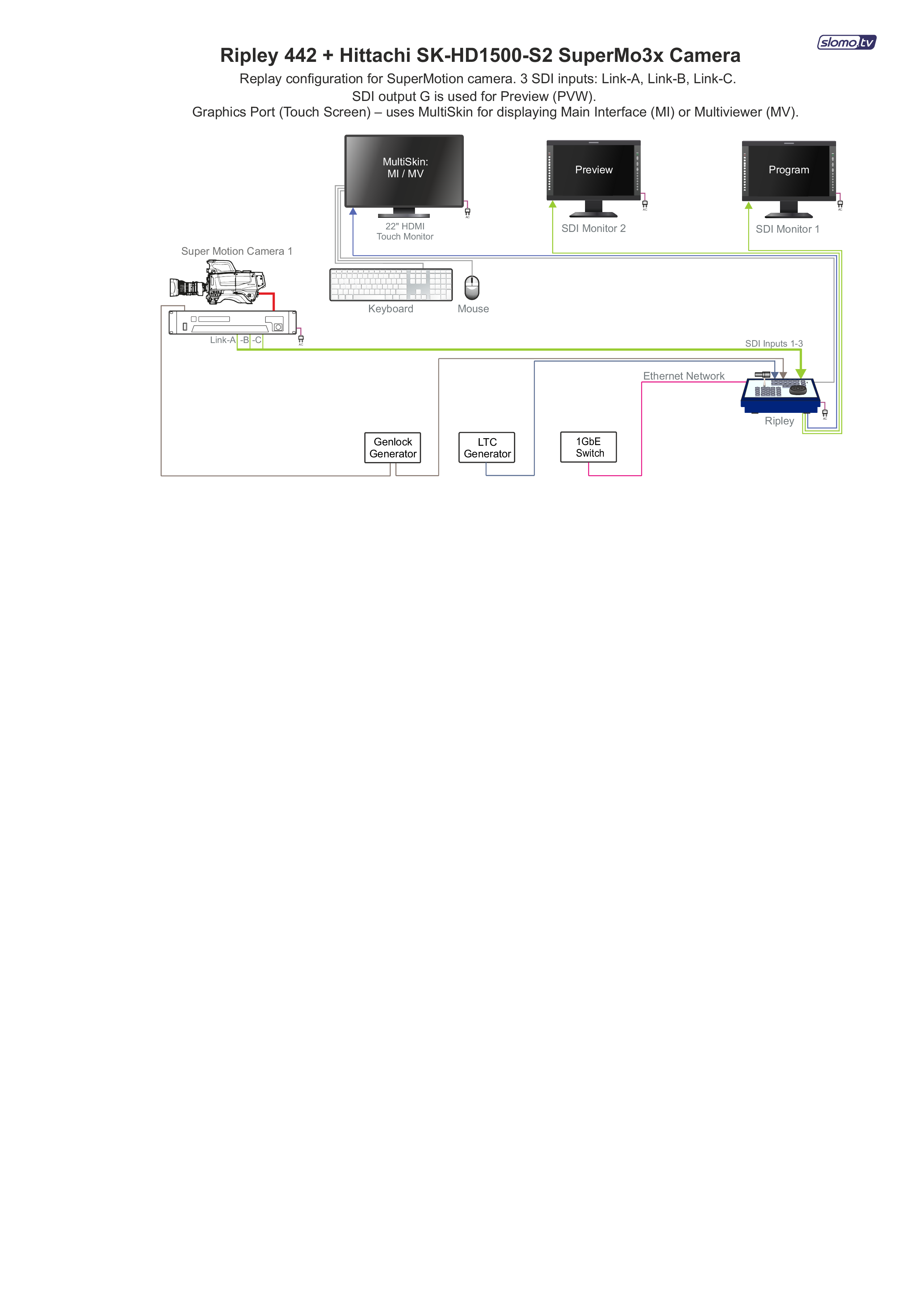

Ripley 442 + Hitachi SK-HD1500-S2 SuperMo3x Camera	Replay configuration for SuperMotion camera. 3 SDI inputs: Link-A, Link-B, Link-C. SDI output G is used for Preview (PVW). Graphics Port (Touch Screen) – uses MultiSkin for displaying Main Interface (MI) or Multiviewer (MV).

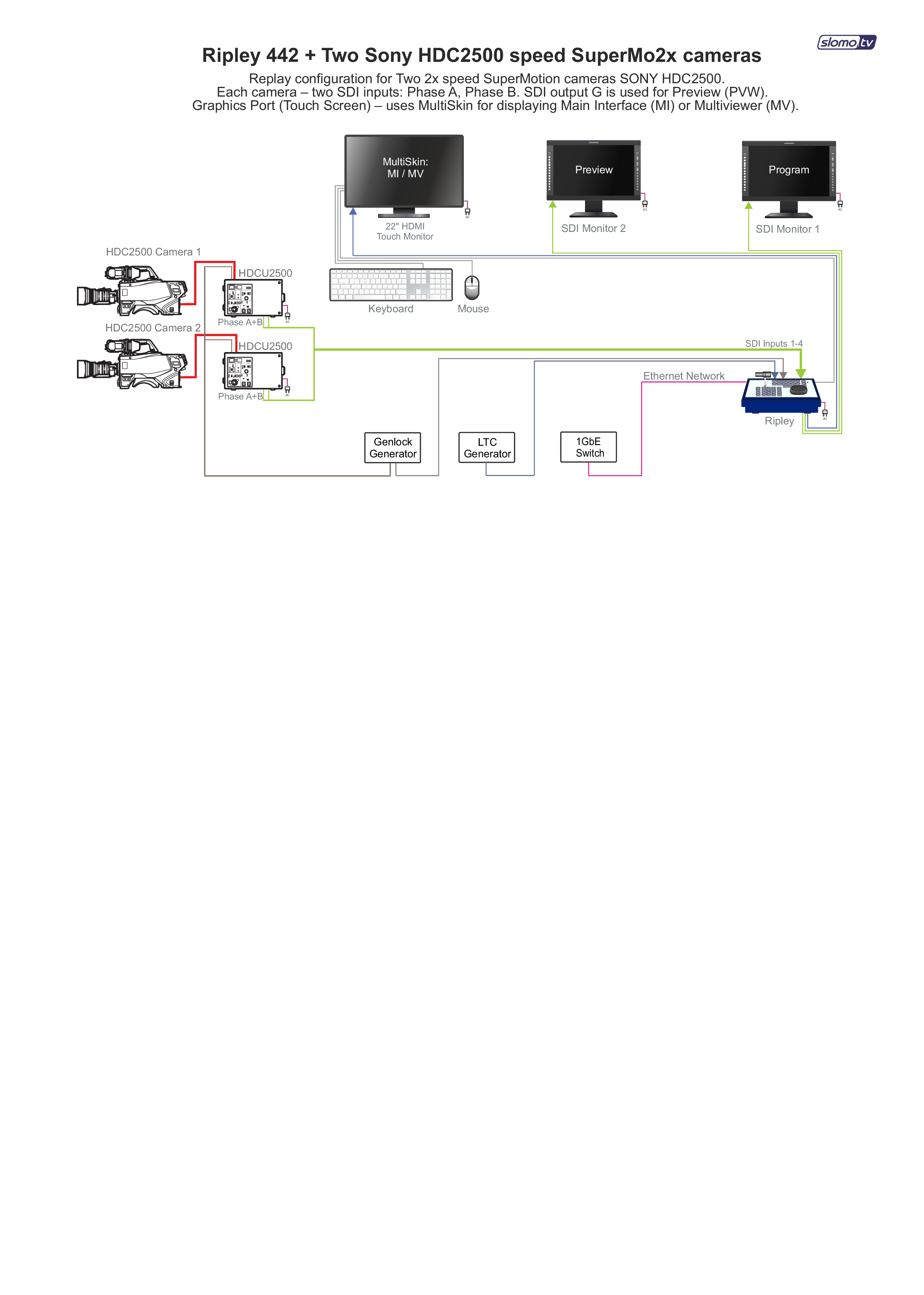

Ripley 442 + Two Sony HDC2500 SuperMo2x cameras	Replay configuration for Two 2x speed SuperMotion cameras SONY HDC2500. Each camera – two SDI inputs: Phase A, Phase B. SDI output G is used for Preview (PVW). Graphics Port (Touch Screen) – uses MultiSkin for displaying Main Interface (MI) or Multiviewer (MV).

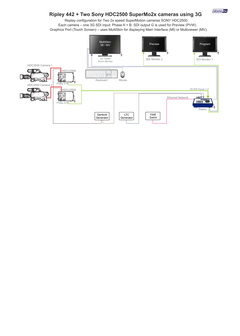

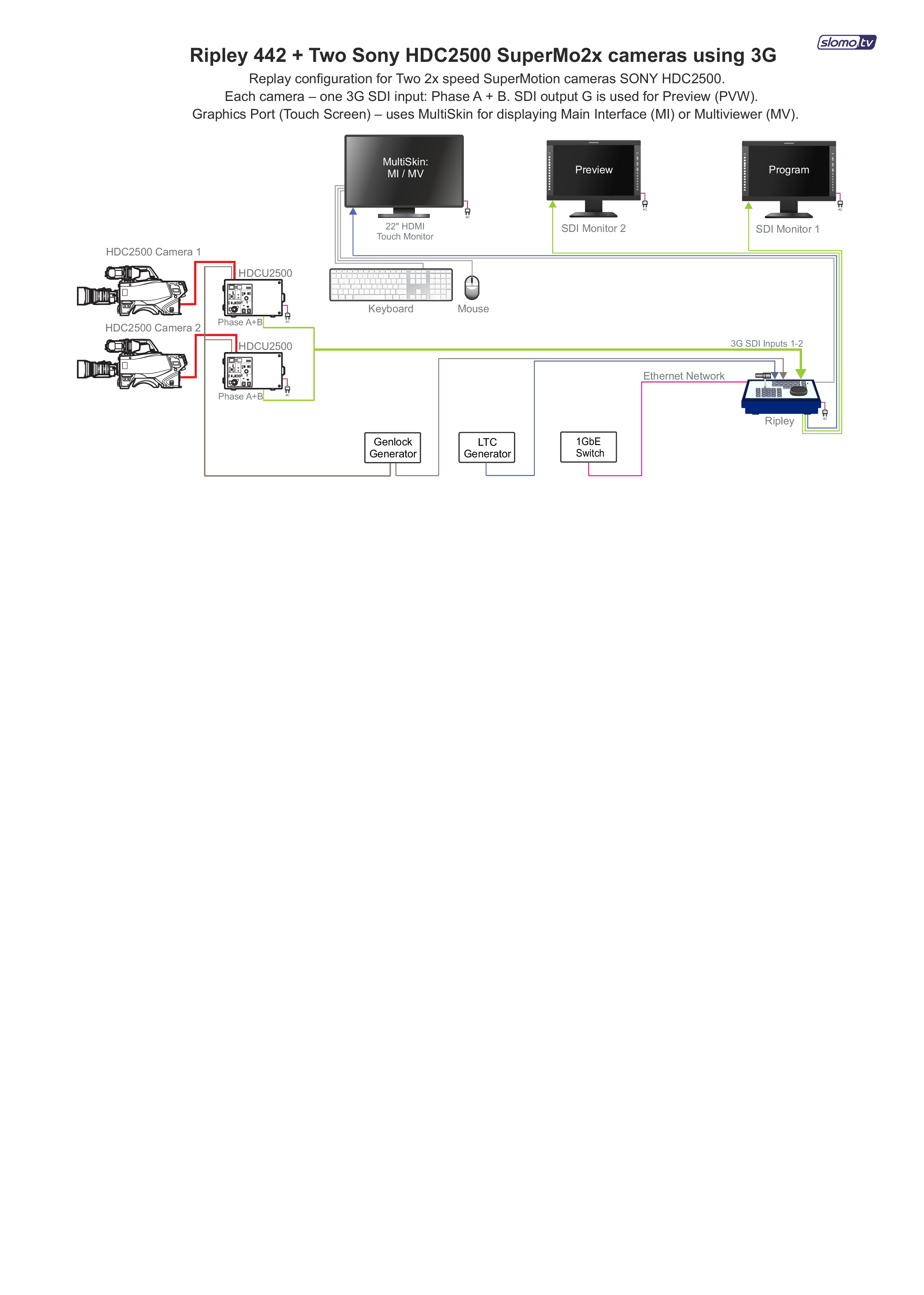

Ripley 442 + Two Sony HDC2500 SuperMo2x cameras using 3G	Replay configuration for Two 2x speed SuperMotion cameras SONY HDC2500. Each camera – one 3G SDI input: Phase A, Phase B. SDI output G is used for Preview (PVW). Graphics Port (Touch Screen) – uses MultiSkin for displaying Main Interface (MI) or Multiviewer (MV).

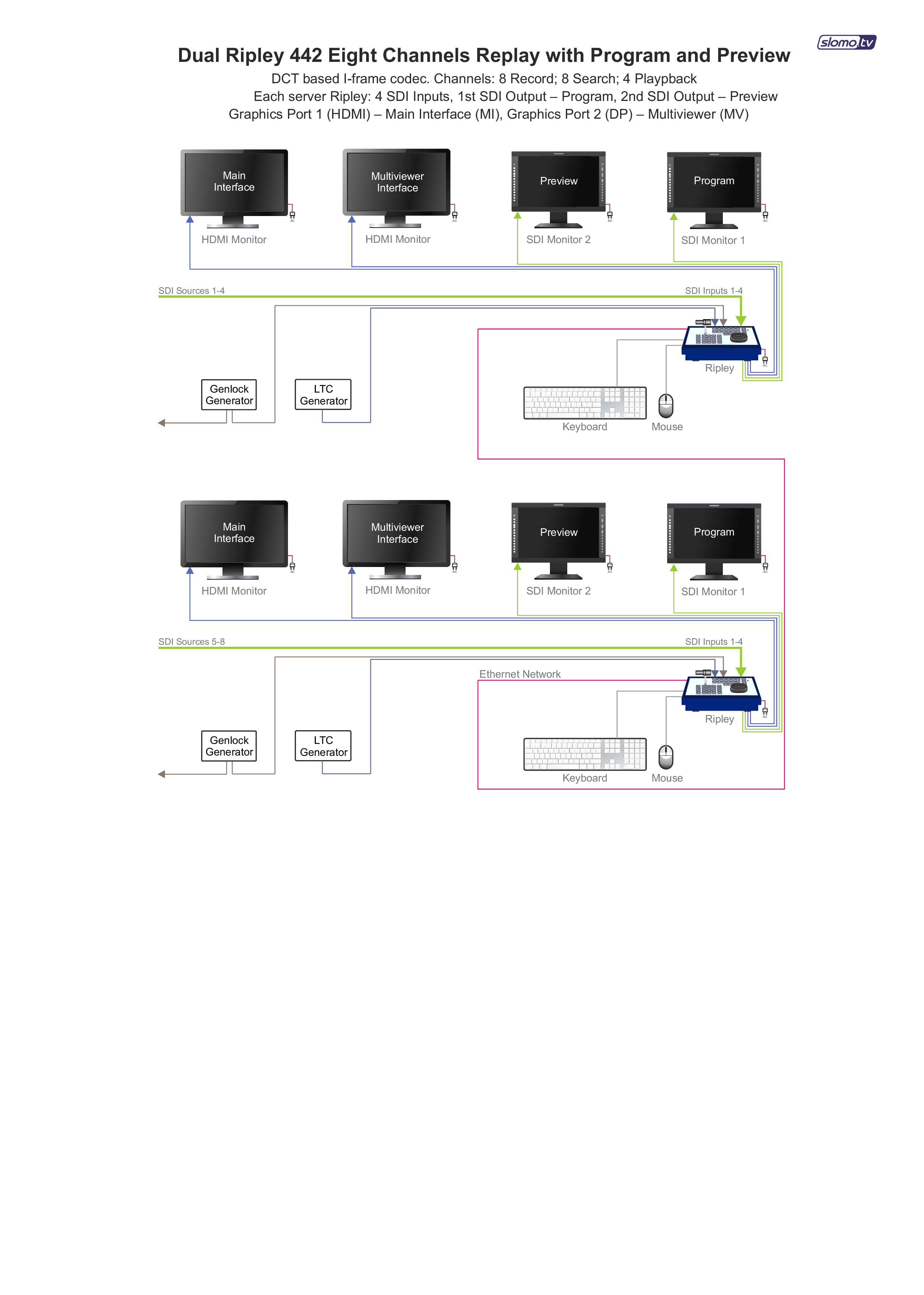

Dual Ripley 442 Eight Channels Replay with Program and Preview	DCT based I-frame codec. Channels: 8 Record; 8 Search; 4 Playpback. Each server Ripley: 4 SDI Inputs, 1st Output – Program, 2nd Output – Preview. Graphics Port 1 (HDMI) – Main Interface (MI), Graphics Port 2 (DP) - Multiviewer (MV)

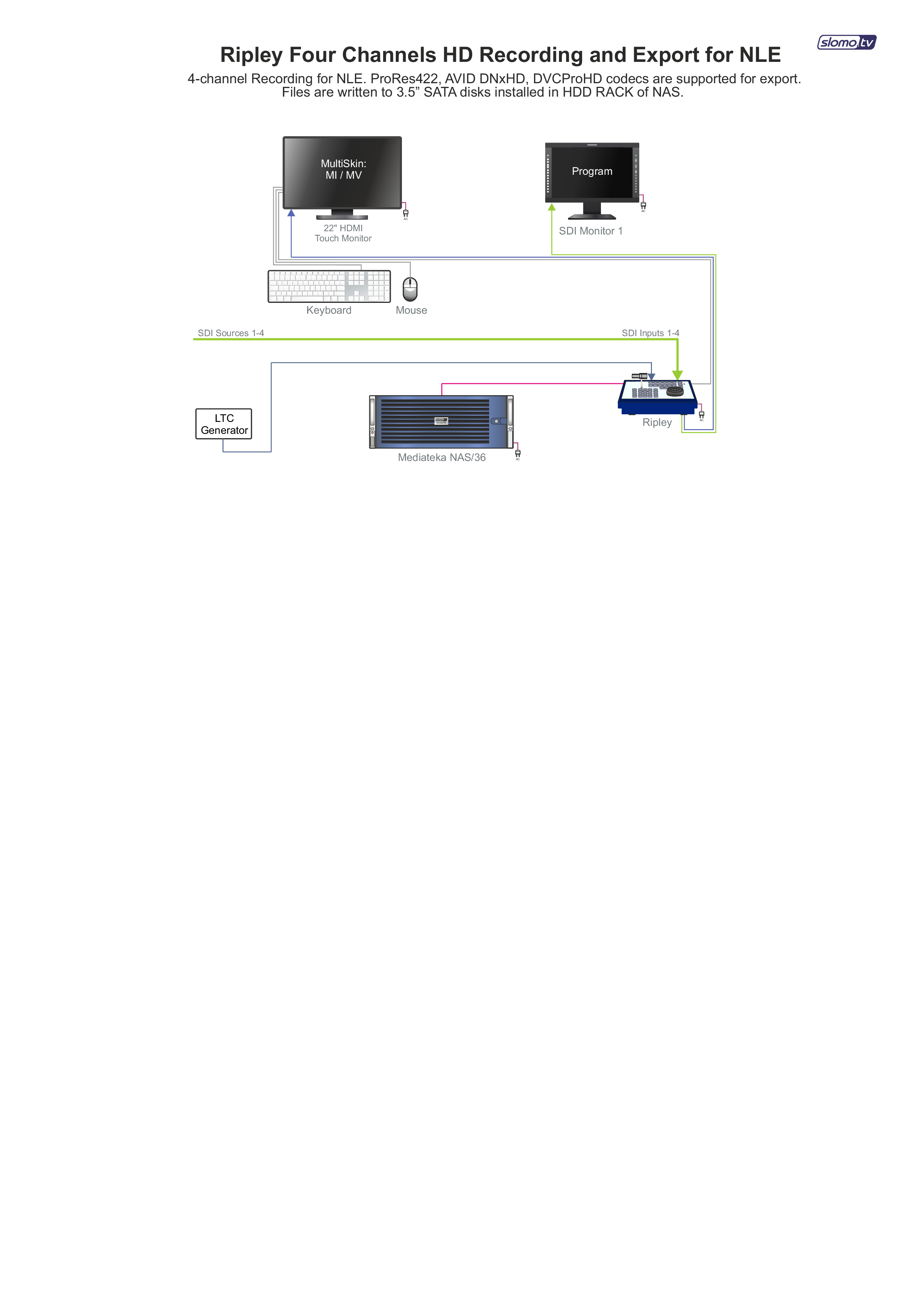

Ripley Four Channels HD Recording and Export for NLE	4-channel Recording for NLE. ProRes422, AVID DNxHD, DVCProHD codecs are supported for export. Files are written to 3.5" SATA disks installed in HDD RACK of NAS.
Ripley Six Channels HD Recording and Export for NLE – Ripley_6ch_NLE_NAS	6-channel Recording for NLE. ProRes422, AVID DNxHD, DVCProHD codecs are supported for export. Files are written to 3.5" SATA disks installed in HDD RACK of NAS.

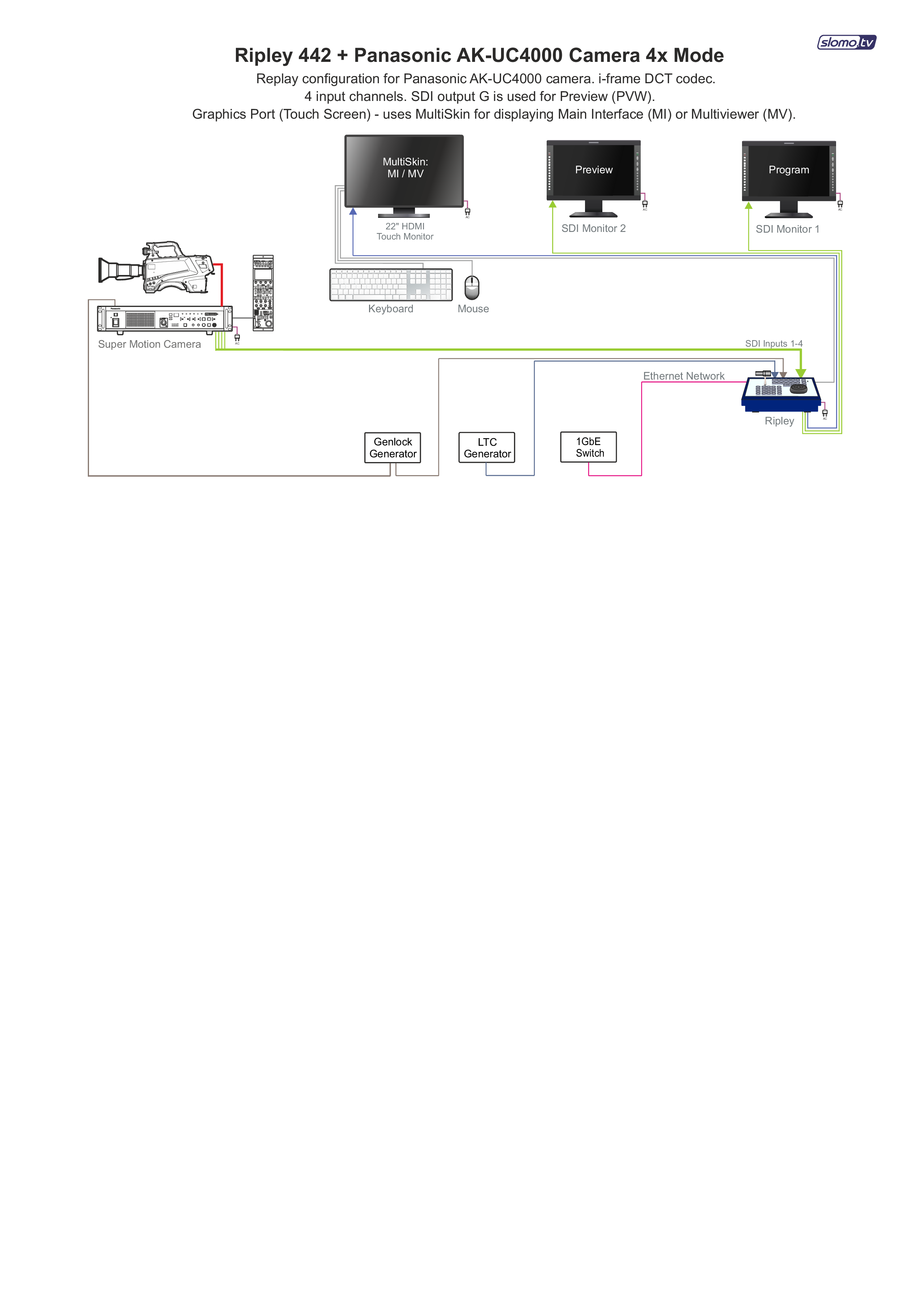

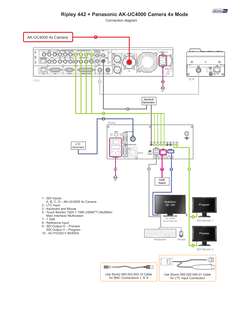

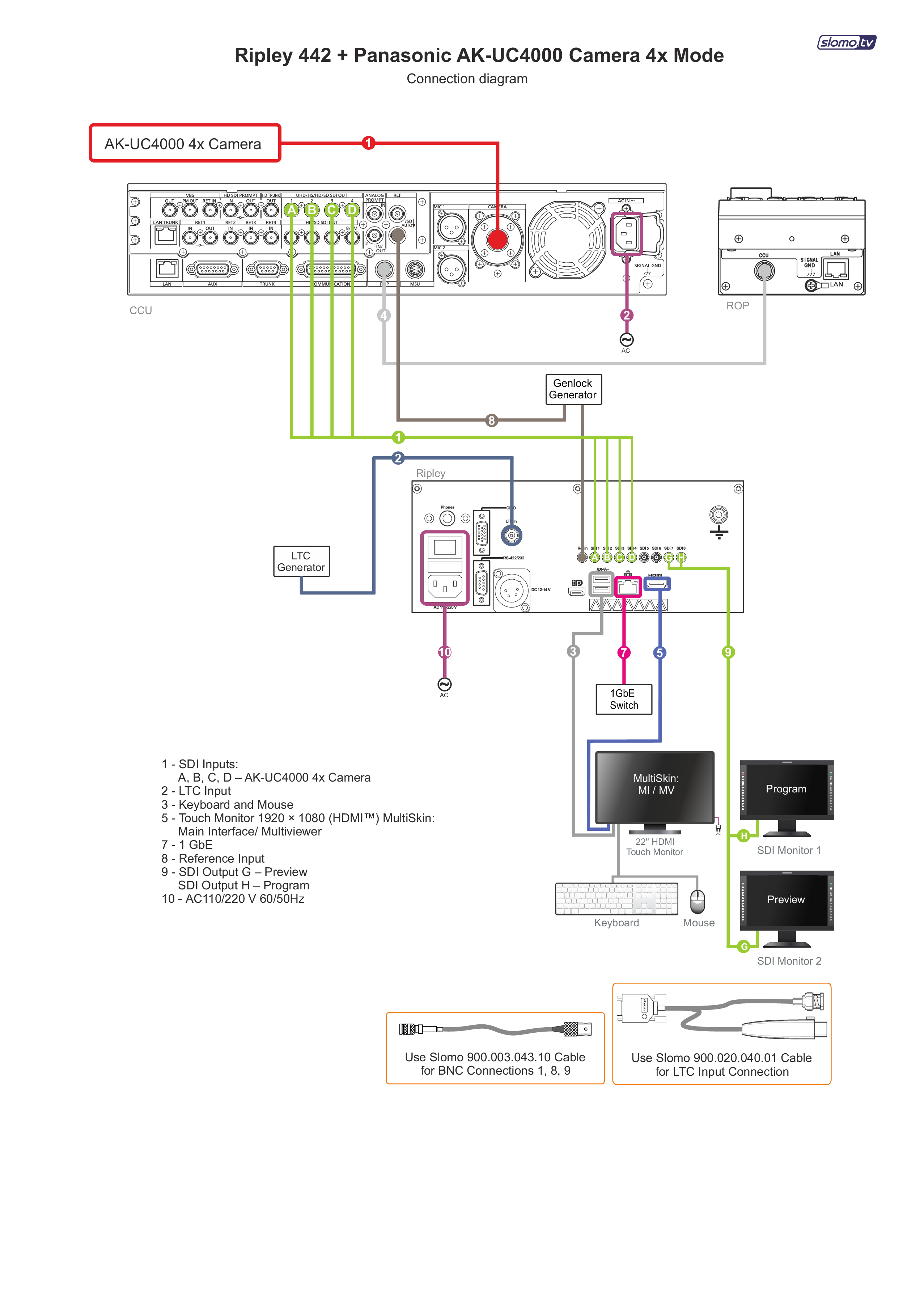

Ripley 442 + Panasonic AK-UС4000 Camera 4х Mode	Replay configuration for Panasonic AK-UС4000 camera. i-frame DCT codec. 4 input channels. SDI output G is used for Preview (PVW). Graphics Port (Touch Screen) – uses MultiSkin for displaying Main Interface (MI) or Multiviewer (MV).

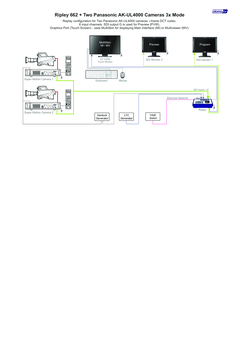

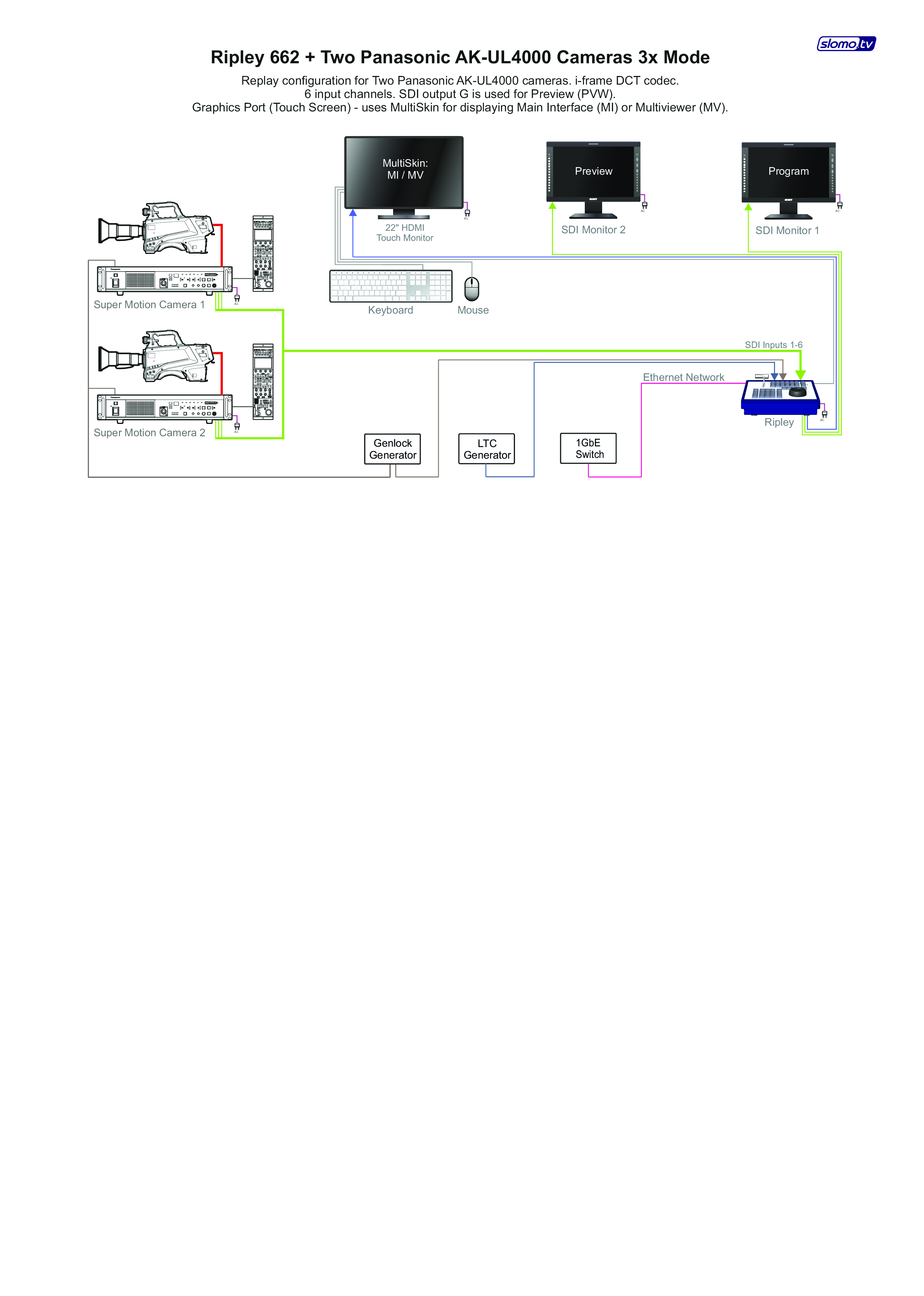

Ripley 662 + Two Panasonic AK-UС4000 Cameras 3х Mode	Replay configuration for Two Panasonic AK-UС4000 cameras. i-frame DCT codec. 6 input channels. SDI output G is used for Preview (PVW). Graphics Port (Touch Screen) – uses MultiSkin for displaying Main Interface (MI) or Multiviewer (MV).

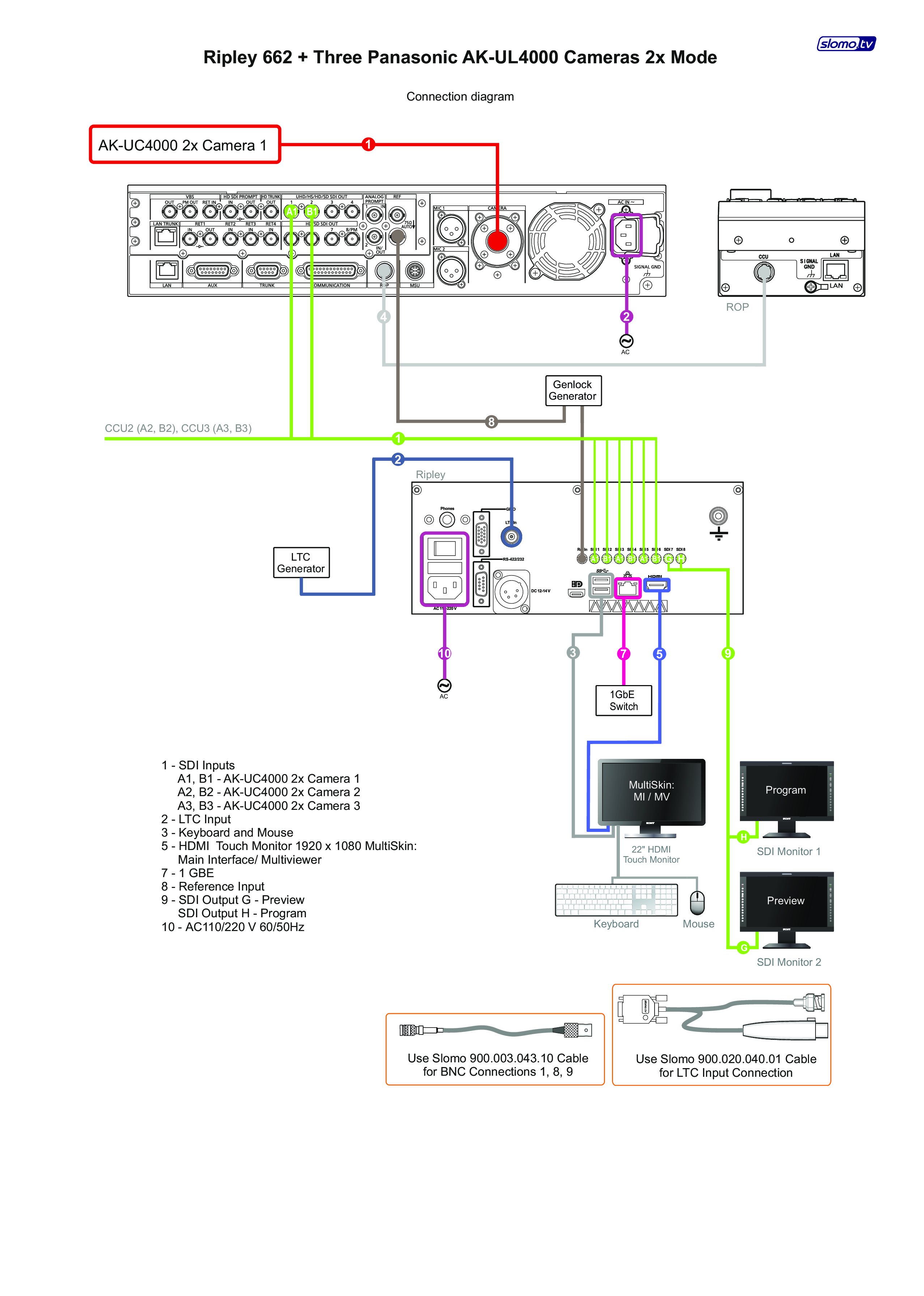

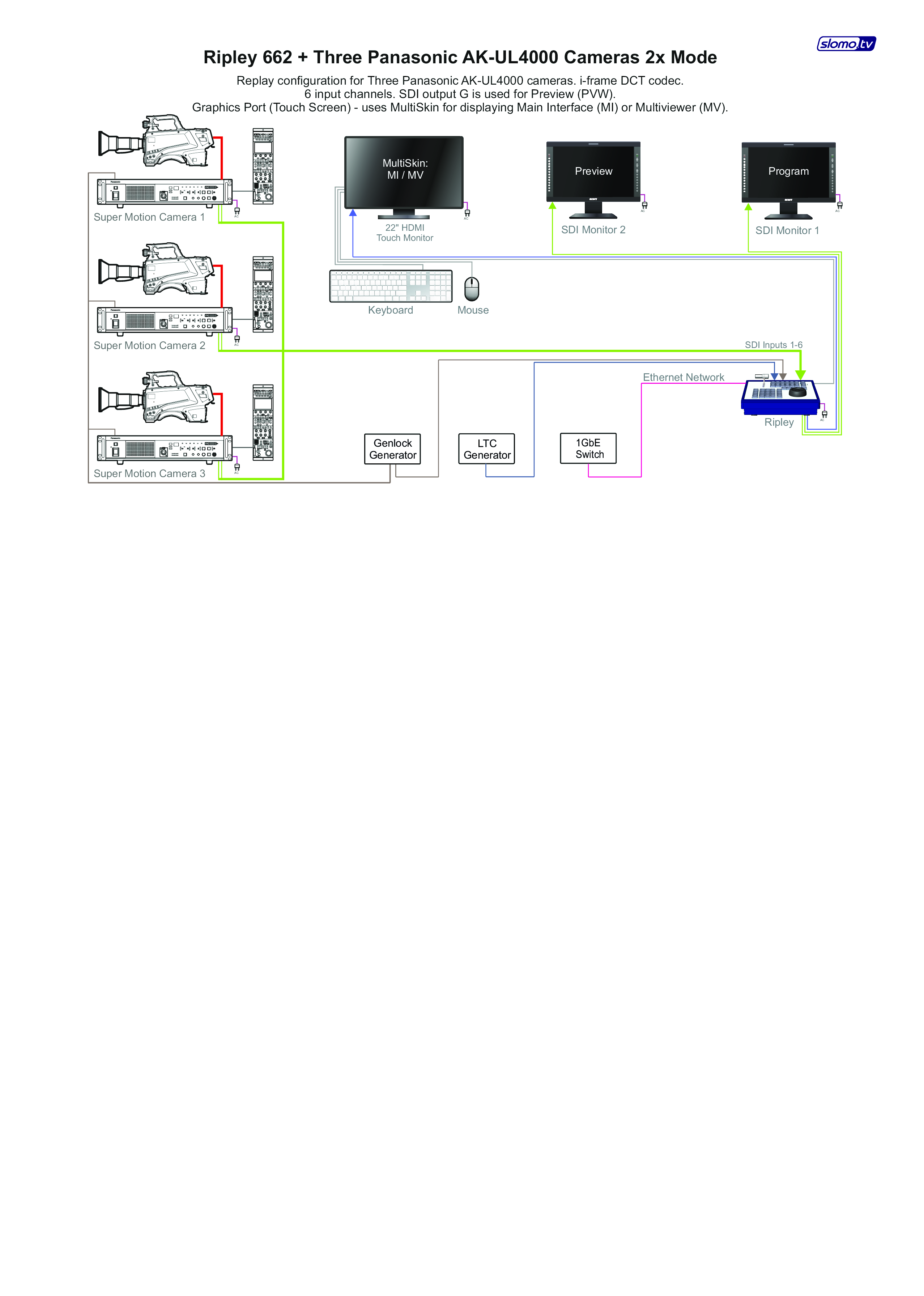

Ripley 662 + Three Panasonic AK-UC4000 Cameras 2х Mode	Replay configuration for Three Panasonic AK-UL4000 cameras. i-frame DCT codec. 6 input channels. SDI output G is used for Preview (PVW). Graphics Port (Touch Screen) – uses MultiSkin for displaying Main Interface (MI) or Multiviewer (MV).
