| Replay configuration for ST 2110-based operation |

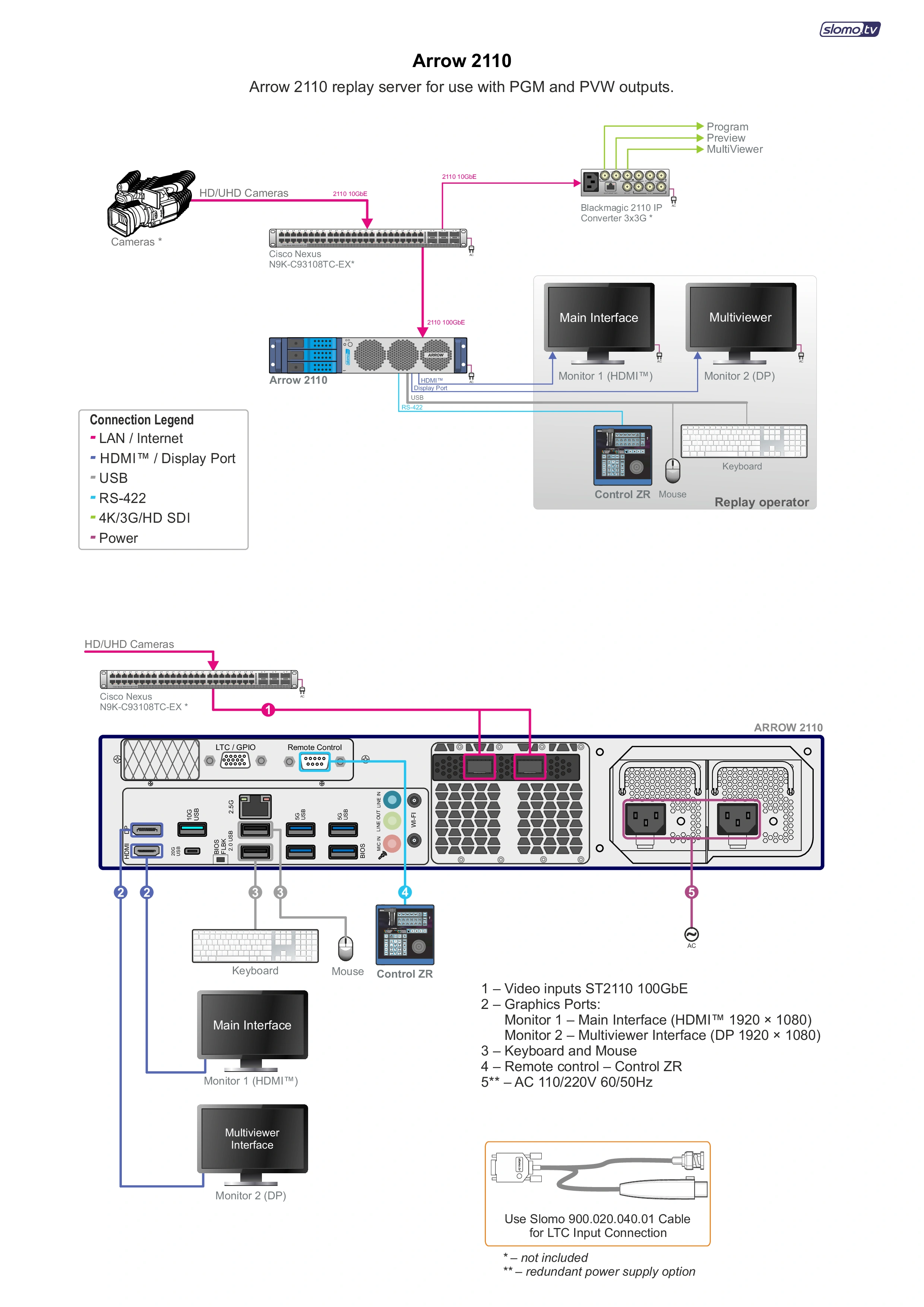

Example of using a 2U Arrow 2110 server for processing ST 2110-based camera signals (up to 32 HD channels / up to 8 UHD channels). Graphics Port 1 – Main interface. Graphics Port 2 – Multiviewer interface. SDI converter for Program, Preview and Multiviewer outputs. Control-ZR replay console. Redundant power supply option.
This configuration can be used for sports replay production.
|
|
|
| Replay configuration for ST 2110-based operation with redundancy |

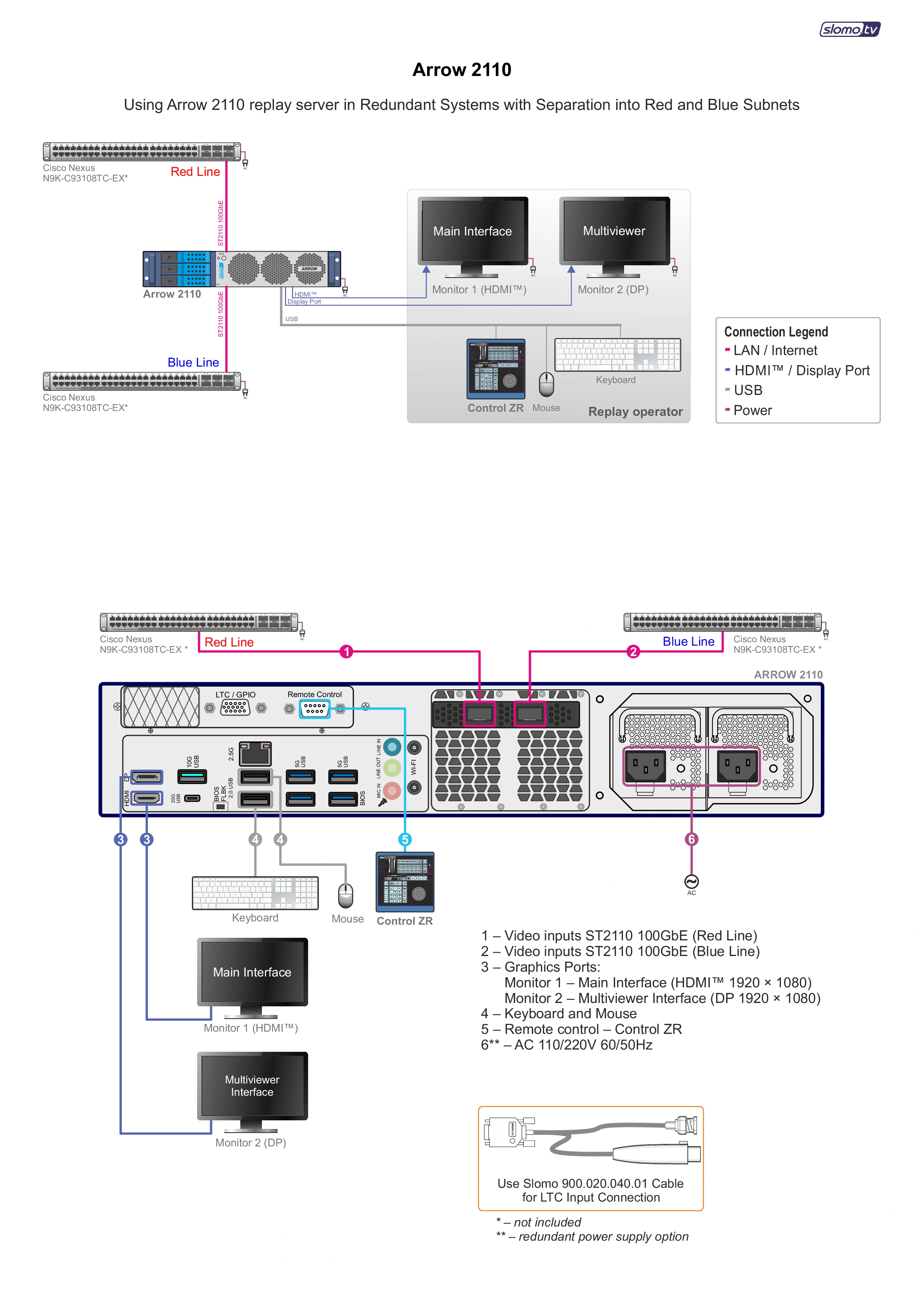

Example of using a 2U Arrow 2110 server for processing ST 2110-based camera signals (up to 32 HD channels / up to 8 UHD channels) with redundancy. Redundancy is achieved using two separate subnets – "red" and "blue" – for input data. Graphics Port 1 – Main interface. Graphics Port 2 – Multiviewer interface. SDI converter for Program, Preview and Multiviewer outputs. Control-ZR replay console. Redundant power supply option.
This configuration can be used for multichannel recording and sports replay production.
|
|
|
| Configuration for ST 2110-based operation with Multiviewer option |

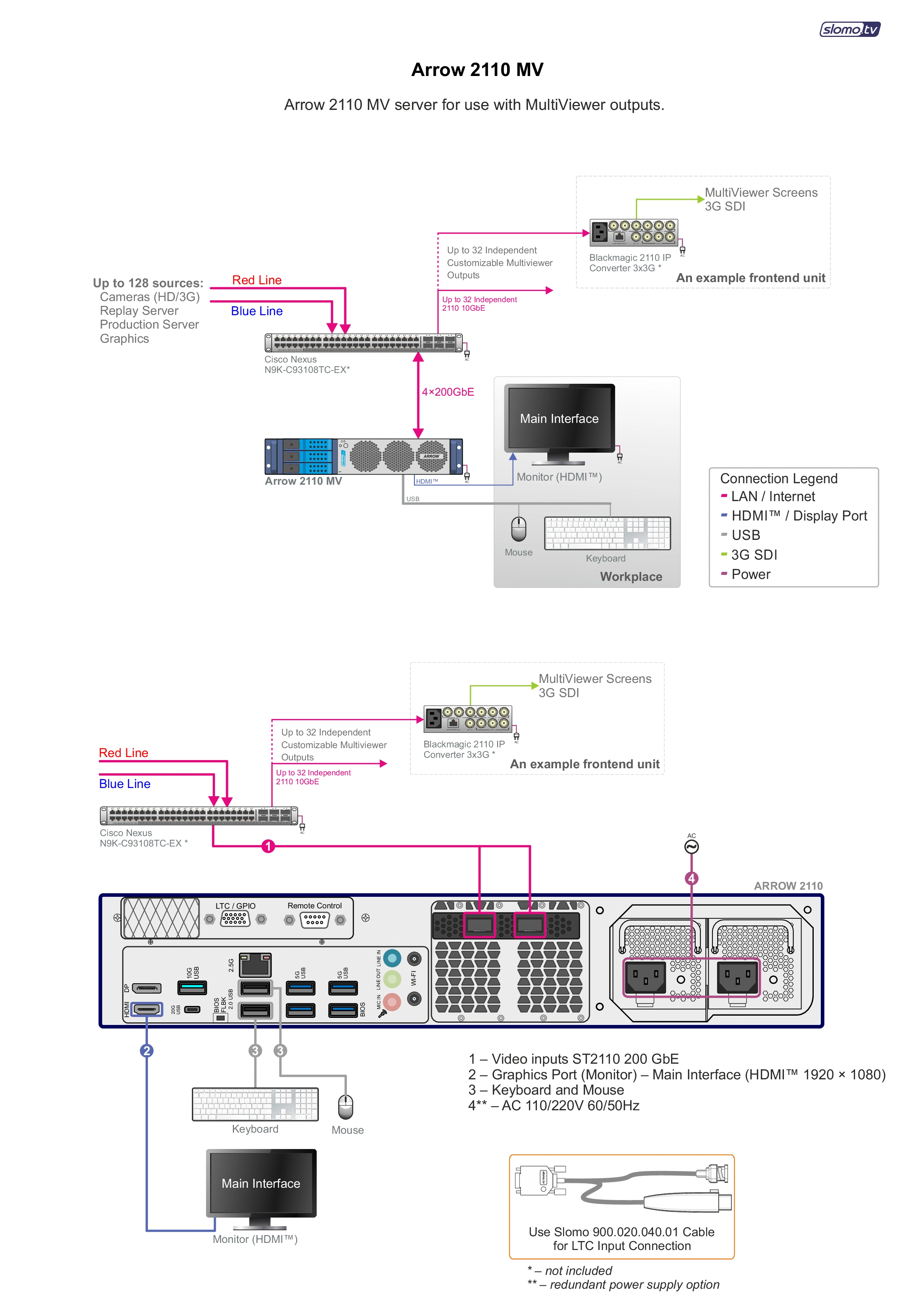

Example of using a 2U Arrow 2110 server for processing ST 2110-based camera signals (up to 32 HD channels / up to 8 UHD channels) with the Multiviewer option. Enables Multiviewer signal outputs using various channel combinations and screens of different sizes. Graphics Port 1 – Main interface. SDI converter for Multiviewer outputs. Redundant power supply option.
This configuration can be used for displaying video signals in Multiviewer mode on multiple screens.
|
|
|
