videoReferee®-5G/5GHS – professional video judging system for ice hockey
Advanced video judging server
24 3G/HD SDI video channels
A powerful server capable of working with 24 video channels with simultaneous search across all channels
4 inputs for high-speed 100/120 fps cameras
Compatibility with the latest high-speed mini-2X-vR-Cam cameras from SLOMO.TV, as well as with other high-speed camera models
High-Speed Camera SDI Out
Converting high-speed camera video signals to standard video signals (50i/50p SDI)
Supports simultaneous operation with HD and 3G signals
Any combination of signals to suit user requirements
Hybrid SSD/HDD video array
Combines high recording speed and large archive capacity
Up to 5 additional workplaces
Each workplace is completely independent of the others
Remote workplaces
System operation via the Internet
Gadget Control
Server operation and video judging with a wireless tablet
Gesture control
When using a MultiTouch monitor for the referee's workplace
24 channels
Having 24 video channels allows using both the referee's cameras and television cameras, providing more angles for reviewing controversial moments.
Referees can review a controversial moment simultaneously from multiple cameras, frame by frame, or in slow motion. Slow motion video clips can be added to the television broadcast.
With 24 video channels, videoReferee®-5G/5GHS can meet all requirements at the KHL level and above.
4 inputs for high-speed 100/120 fps cameras
videoReferee®-5GHS supports up to 4 high-speed cameras. Reviewing footage from 4 SuperMotion cameras will allow the video referees to make a correct decision in the most difficult to assess zones of the court: the blue lines and the goal areas.
Hybrid video array
Hybrid SSD/HDD video array with 24 channels provides high speed recording and playback during system operation and at the same time provides a large amount of memory for the archive.
Additional workplaces
videoReferee®-5G/5GHS supports up to 5 independent remote workplaces, including a wireless tablet for the on-field referee. Each remote workplace operator works independently of the others.
The remote workplace option can help organize the referee infrastructure in accordance with the KHL regulations.
Remote workplaces option
Remote workplaces are used for the operation of the Situation Room and allows KHL referees and operators to make decisions independently of the rest of the arena staff.
Workplace organization and equipment
The system is equipped with 4 graphics ports for interface monitors. The referee workplace is equipped with a standard monitor, or a MultiTouch monitor with a gesture interface.
The dedicated Control-VR control panel provides fast operation and instant access to all cameras, presets, and other functions.
Referee buttons can be connected to the server for convenient event marking.
Quick and comfortable controversial moment review
The videoReferee®-5G/5GHS system has all the necessary functions for quick and accurate video judging:
Event markup with reference to the active channel
Automatic tag creation while working with the scoreboard controller
Quick event search by tags
Synchronous search of the recorded material
Intuitive and high-performance interface for quick material review
Displaying 1 / 2 / 3 / 4 cameras simultaneously to analyze the controversial moment from different angles
Playback speed control and zoom in for detailed review
Loop mode – looping a specific moment for review
Camera presets creation for the most convenient angles for specific areas of the arena
Scoreboard controller integration

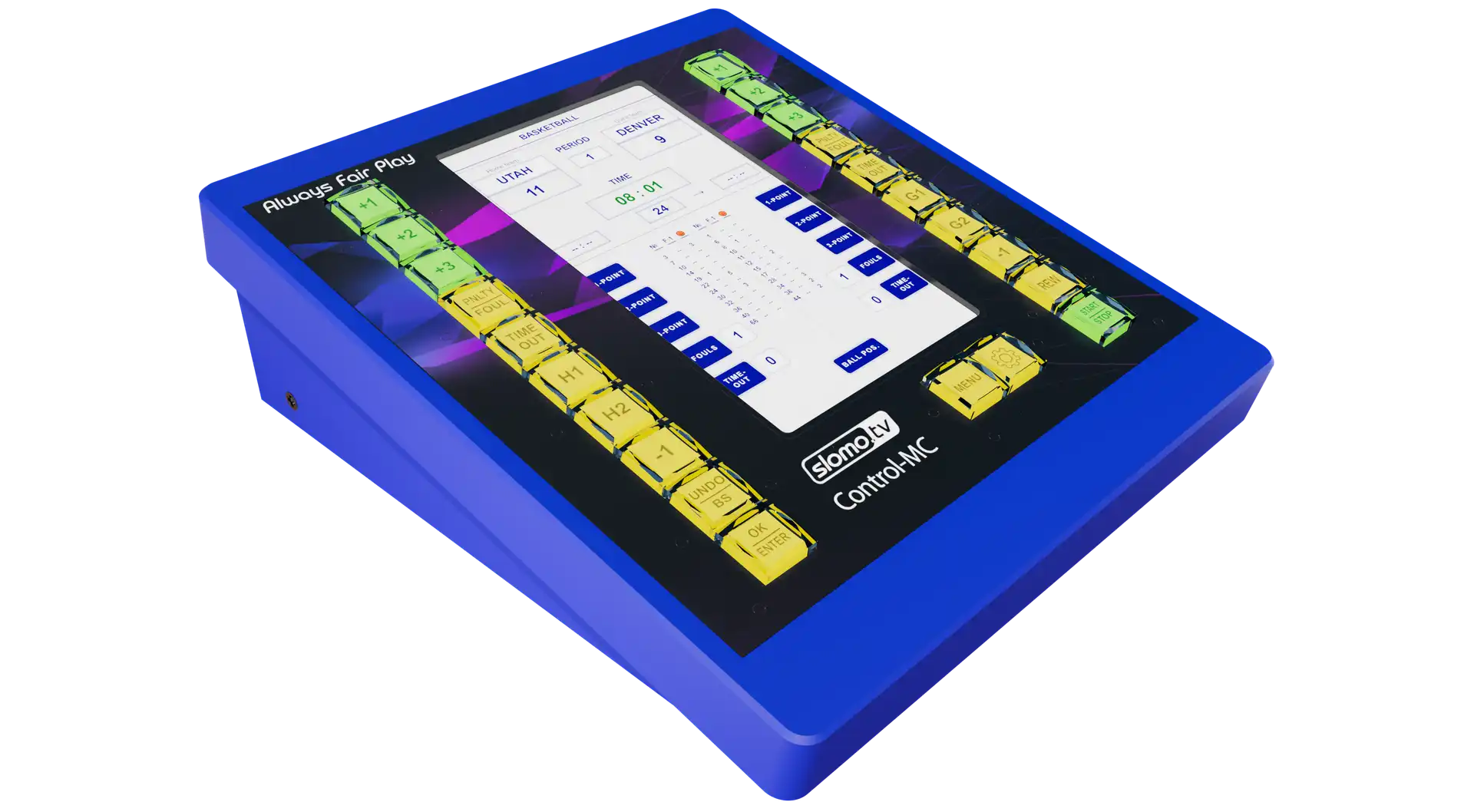

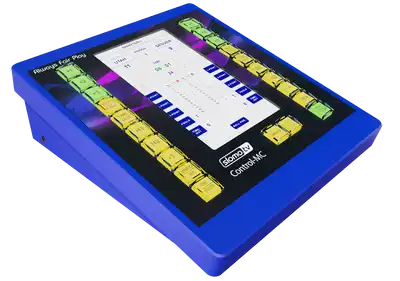

videoReferee®-5G/5GHS supports the proprietary Control-MC scoreboard controller and other popular scoreboard controllers: Westerstrand, Nautronic NTpult, Nautronic NAUCON-1000, Bodet, Omega Saturn, Megalux, NataInfo, Victory, VITA, Araneus–NGLight, ElTablo, Stramatel, Colosseo, CEDR, Favero Console-700.
Gadget Control
The Gadget Control option allows to connect to the server from a referee tablet via WI-FI. This allows the referee to search, view and analyze controversial game moments right on the playing field. The interface has intuitive gesture control.
Synchronizing video from non-synchronous cameras
videoReferee®-5G/5GHS can be used in various arenas, including those where the installed cameras are not externally synchronized. As a solution, SLOMO.TV has developed a technology that allows video synchronization from non-synchronous cameras when reviewing controversial moments.
To achieve absolute synchronicity, the videoReferee® replay system can be equipped with specialized mini-II-vR-Cam referee cameras that support CloudyGenlock® technology.
Game data control
videoReferee®-5G/5GHS supports two ways of integrating official game data:
- Direct scoreboard controller connection and data output to the interface video window;
- Game scoreboard broadcast overlay on the video windows.
At the end of the event, all game data will be saved and available for export.
Referee control panel Control-VR

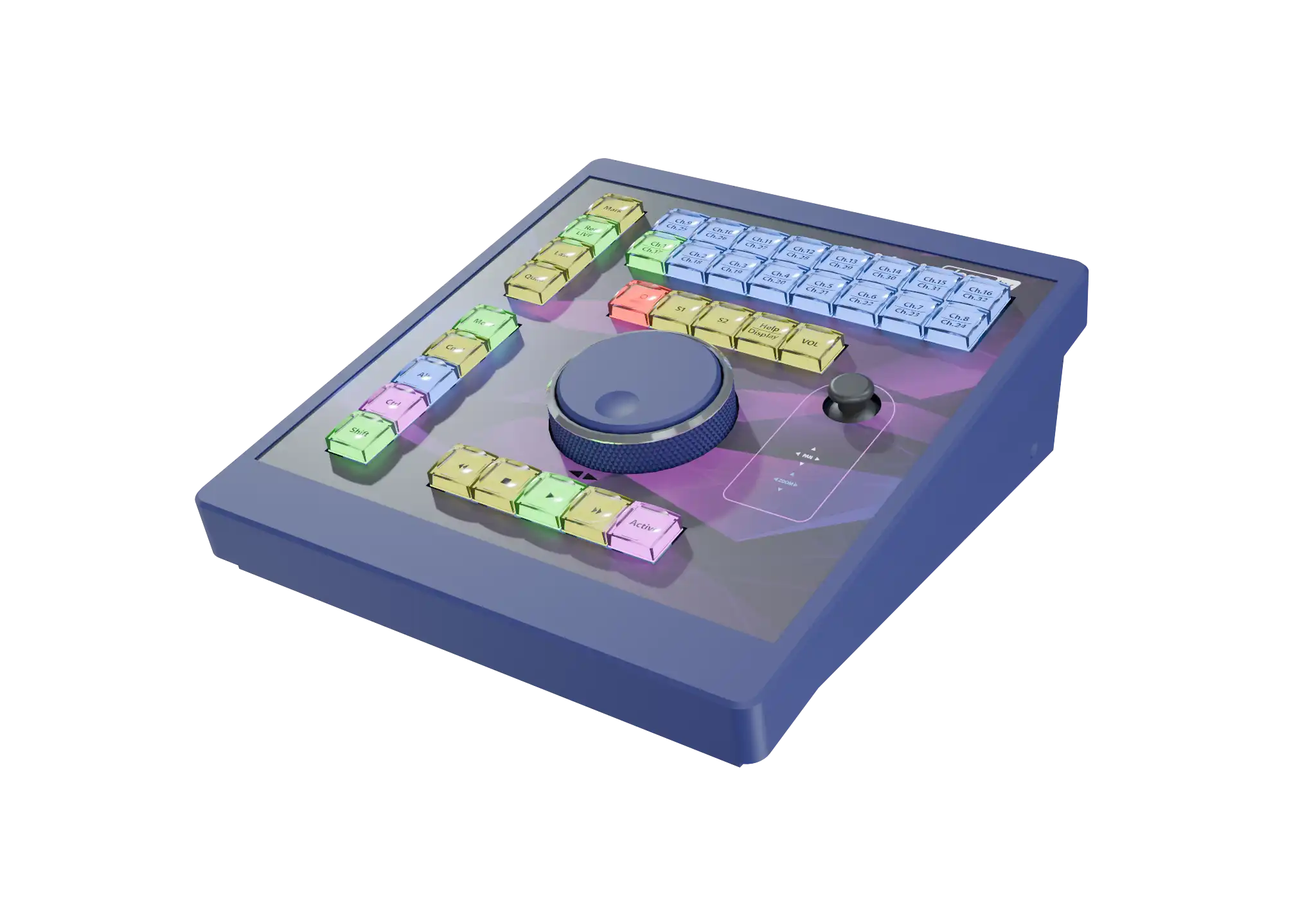

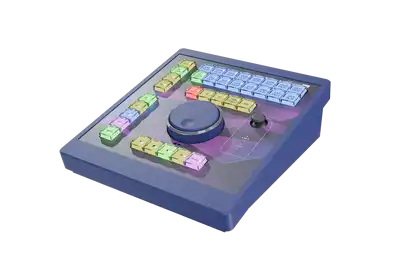

Specialized referee control panel Control-VR by SLOMO.TV is designed to enhance the speed and comfort of server operations. To assist the operator, 35 RGB-illuminated buttons offer indications and prompts, while the technologically advanced Jog/Shuttle wheel, featuring four bearings and a Hall effect sensor, guarantees both precision and longevity of the assembly.
Control-VR has been designed with all specifications for video refereeing in mind.
The remote control has the following functions:
- Switching between the cameras displayed on the monitor
- Switching the number of cameras displayed on the referee monitor – 1 / 2 / 3 or 4 cameras
- Viewing zoomed in images from a selected channel
- Tag creation
- Viewing real-time footage or searching through recorded material
- Tagging events for export
- Specific moment playback
- Loop playback
- Camera presets for instant access
- Assigning keys to events / searching by keys
| Parameters | videoReferee®-5G | videoReferee®-5GHS |
|---|---|---|
| Video Inputs | ||
| HD-SDI | 24 | 24 |
| 3G-SDI * | 24 | 24 / 20 ** |
| For high speed cameras | – | – / 4 ** |
| SDI video outputs | ||
| for high-speed cameras ** | – | – / 4 ** |
| Video Formats | ||
| 1080i | 1920 x 1080 / 50i; 1920 x 1080 / 59.94i | |
| 1080p | 1920 x 1080 / 29.97PsF; 1920 x 1080 / 25PsF | |
| 720p | 1280 x 720 / 59.94p; 1280 x 720 / 50p | |
| 3G * | 1920x1080/59.94p, 1920x1080/100i 1920x1080/119.88i | |
| Support of 16:9 and 4:3 | ||
| Simultaneous operational channels | ||
| HD | 24 Recording + 1 / 2 / 3 / 4 Search or 1 Playout | |
| 3G * | 24 Recording + 1 / 2 / 3 / 4 Search or 1 Playout | |
| Video Standards SDI | ||
| HD | HD video conforms to SMPTE 292M, SMPTE 274 720p video conforms to SMPTE 296M |
|
| 3G * | 3G video conforms to SMPTE 424M / SMPTE 425M | |
| Output for 2nd referee's monitor | ||
| 4 (via Display Port) | ||
| Referee output for broadcast *** | ||
| HD-SDI | ||
| Multiviewer | ||
| Up to 26 video windows. 2 Layouts Option Delay Mode 3s |
||
| Gesture control **** | ||
| Embedded touch screen control *** | ||
| Referee workplaces (each additional workstation is equipped with a remote control) | ||
| 1 + 3 *** | ||
| Separate workplace for an engineer | ||
| Yes | ||
| Audio Inputs | ||
| 2 embedded audio channels per video channel (embedders are not included) | ||
| mini-vR-Cam Audio Inputs | ||
| 2 audio sources per camera | ||
| Audio Outputs | ||
| MB audio output / DP | ||
| Internal storage | ||
| Type | Hybrid: SSD + HDD | |
| Capacity | 20 ТB + 58 ТB | |
| Scoreboard Interface ***** | ||
| Yes / PIP from any camera | ||
| Compression | ||
| Recording | I-Frame DCT Based | |
| Export formats | M2TS; MPEG-4 (*.mp4); H264 (*.mp4); XDCAM 50 (*.mxf) (for HD only) | |
| Controls | ||
| Specialized Jog/Shuttle controllers Control-VR (via RS-232 /RS-485 / USB / Ethernet), keyboard, mouse | ||
| Additionally | ||
| Ability to network with SLOMO.TV servers | ||
| Control from HQ via Internet | ||
| Yes | ||
| Data exchange | ||
| Ethernet | 1/10 GbE | |
| USB3.0 | Built-in trayless/toolless 3.5" SATA HDD Rack | |
| DMR™ RACK | 1 | |
| Maximum distance of connections | ||
| SDI | Up to 110m | |
| 3G-SDI | Up to 90m | |
| Control | Up to 150m | |
| DP | Up to 5m | |
| Power | ||
| Voltage | 110V/60Hz or 220V/50Hz Redundant PWR Supply |
|
| Consumption | 450 W | |
| Physical Parameters | ||
| Dimensions (H × W × L) | 176.5 mm × 484 mm × 591 mm | |
| Weight | 19.5 kg / 25.9 kg | |
|
Notes: * – 3G SDI Level A, Level B. ** – Option for outputting high-speed camera signals for broadcasters. When using this option, the number of input channels is reduced by the number of output cameras (e.g. from 24 to 20 when using 4 cameras). *** – Optional. **** – Touch screen monitor is provided by user. Recommended: Iiyama multi-touch monitor ***** – Supported: Westerstrand, Nautronic NTpult, Nautronic NAUCON-1000, Bodet, Omega Saturn, Megalux, NataInfo, Victory, VITA, Araneus–NGLight, ElTablo, Stramatel, Colosseo, CEDR, Favero Console-700, Control-MC. |
||
