Arrow V – Record-breaking performance in Recording and Replays

Record-breaking Recording and Replay performance in compact chassis

A new generation of slow motion and multi-channel recording systems that meet all the requirements for broadcast-grade servers.

Fast, flexible and reliable Arrow V servers are designed for events and sports broadcasting of any level of complexity and for recording of TV shows and series.

The Arrow V server took all the best features and capabilities from its predecessors and became more powerful: the number of video processing channels was doubled. Like all slomo.tv servers, Arrow V offers record-breaking performance of the replay interface.

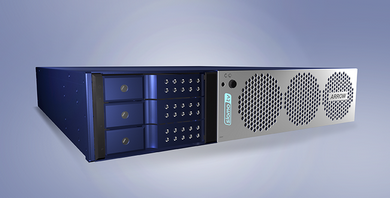

The compact 2U chassis (88 x 482 x 512 mm), lightweight (12 kg) and SSD-based storage make these servers ideal for mobile solutions and for integration into existing studio and OB Van infrastructure.

Arrow V is equipped with 16 bi-directional SDI I/O. In its basic configuration, the server supports the 14142 replay mode for HD:

14 recording + 14 search + 2 playback channels + FX.

The top replay configuration provides:

For HD: 14 recording + 14 search + 2 playback channels + FX;
For 3G: 14 recording + 14 search + 2 playback channels + FX.

Two independent workplaces

The Arrow V server can support up to two independent full-featured workplaces (option).

In replay configurations with 2 replay workplaces each operator works with following channel configuration:

7 Rec + 7 Search + 2 Playback + FX for HD
Free SDI output is used for Program, Preview is displayed in the Multiviewer interface.
6 Rec + 6 Search + 2 Playback + FX for 3G
Free SDI outputs are used for Program and Preview.

Each workplace includes a Control ZR replay console.

Record-breakingly fast and high-performance replay interface

Fast and intuitive push-button replay interface. A skilled operator needs 1.5 times less time to create and save clips than with other servers.

High performance comes from the following features of slomo.tv servers:

Arrow-V slow motion and recording server with 16 recording channels

Simultaneous search on all channels

A unique feature of slomo.tv systems; not available on other servers.

Automatic clip creation

In Instant Replay mode, all aired clips are automatically saved into playlists.

Specialized replay controller

Direct access to most of the functions. The controller's tactile interface allows the operator to work blindly.

Unique combination of slomo.tv's Jog/Shuttle, server performance and advanced algorithms

With only Jog/Shuttle, the operator controls the search speed: from very accurate to very fast.

2 graphics ports

Two configurable graphic ports allow setting up each of them to display different types of interfaces:

Main interface,
Multiviewer,
Game Analyzer.

Dedicated Multiviewer

High-speed operation is also achieved by a dedicated Multiviewer, which can be used on an additional monitor (together with the one built into the main interface). Available are several types of video window layouts from which a replay operator selects the most suitable one for his current work.

Game Analyzer - analysis of the moment with graphics

Allows performing server-side analysis of the moment by superimposing graphical elements, text, and free graphics without the use of additional external tools.

Multiskin function

A single monitor can be used to display different interfaces with the ability to switch between them using a replay controller. For example, the operator uses the Main Interface for editing, and quickly switches to Multiviewer when Instant Replay is needed.

The Multiskin function is useful for compact installations.

The system interface is designed so that the operator's attention is always focused on the monitor. Live windows, service information, clip and playback information, and other necessary data are always in front of the operator's eyes. The operator does not need to be distracted by concentrating on several focus points.

Engineer interface

Multiviewer 1

Multiviewer 2

Multiviewer 3

SSD-based subsystem

The server has a SSD-based disk array, providing high performance when working with a high number of channels. The SSD-based subsystem makes the system resistant to mechanical impact (shock and heavy vibration).

The basic disk subsystem capacity is 133 hours of 100 Mbps HD video. The built-in storage capacity can be expanded up to 266 hours of HD video 100 Mbps.

SSM cameras support

The Arrow V servers are integrated with Super Slow Motion cameras from most manufacturers, providing support for 2x, 3x, 4x SuperMo (e.g. Panasonic AK-UC4000), Xtra Motion 6x (GVG LDX-86 HS/XS) and HyperMotion (1000 FPS Ikegami HiMotion-II) cameras. The number of required SDI inputs depends on the camera’s shooting speed.

Automatic clip creation

In Instant Replay mode, all aired replays are automatically saved to Instant Replay playlists. Clips are immediately available for inclusion in playlists created by the operator.

The replay interface provides quick access to clips or playlists (up to 100 playlists) via hotkeys.

Up to 4,000 clips, 1,000 playlists and 1,000 events can be created within one project. This amount is sufficient for any video production task.

Transfer function – integration into the network environment

Arrow V servers support exchanging of video materials between locally networked slomo.tv servers.

The Arrow V is equipped with a 1GbE interface for video exchange and integration into a network environment of TV companies.

DMR™ technology – Direct multi-channel recording into NLE native files

When working with DMR™, the server, in parallel with recording to a built-in video array, records the native NLE system files on any available media. (For example NAS or HDD/SSD drives installed in server’s front panel racks).

Supported codecs are: ProRes; AVID DNxHD; DVCPro HD; DVCPro 50; IMX; XDCAM 50; AVC-Intra 100/XAVC. Thanks to the parallel recording to the built-in array and to file media, the material is duplicated and kept safe.

Built-in DMR™ Racks – Export, Import and multi-channel recording direct in NLE native file formats on removable SSDs/HDDs

The Arrow V is a great alternative to 4U-6U recording servers.

This compact server provides multi-channel recording for NLE to removable drives without any additional hardware. Arrow V is equipped with 3 built-in DMR™ Racks for 3.5" SATA hard drives for export and import of video material, as well as for recording for non-linear editing native files and codecs with DMR™ technology (DMR™ option).

Up to 16 HD channels can be recorded simultaneously by DMR™. For recording of 5-6 channels with Avid DNxHD/ProRes 422 codecs, the slomo.tv recommends using SSD drives, installed in DMR™ racks (2.5" to 3.5" adapters are required).

Support for growing files

With the DMR™ option, the server works with growing files (MXF, XDCAM 50).

Replay console

The server comes with a Control ZR replay console.

Control ZR is designed for maximum speed and efficiency. It has 51 RGB backlit buttons with light and color indication, providing hints for the operator. The control panel provides direct access to 24 cameras in replay mode.

The console comes with Jog/Shuttle and T-bar. The Shuttle wheel has 64 left and right positions, which allows you to control the search speed and the playback speed. Control console can be connected via RS-232/422, USB and Ethernet. It is powered by PoE or by USB.
